What Is an HVAC Thermocouple?

By Rowan Guthrie

April 30, 2025

If you’ve ever had trouble getting your furnace's pilot light to stay lit or wondered why the heat won’t kick in, the answer might involve a small but vital component called the HVAC thermocouple. Though it’s easy to overlook, this tiny part plays a big role in keeping your home safe and your HVAC system running as it should.

This May Also Interest You: HVAC Terms Every Homeowner Should Know

Understanding what it is and what it does can help you diagnose heating problems and know when it might be time for a replacement.

What Is a Thermocouple in HVAC Systems?

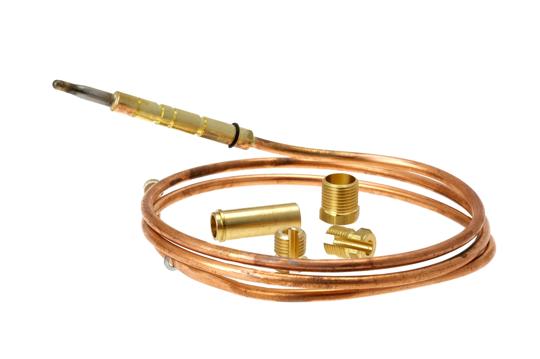

A thermocouple is a type of temperature sensor made of two different metals joined at one end. When the junction is heated, it produces a small electrical current. This current can be used to measure temperature or, in the case of HVAC systems, to detect the presence of a flame. You’ll typically find a thermocouple near the pilot light in older gas furnaces or water heaters. It sits right in the flame so it can sense whether the pilot is on.

Where Is a Thermocouple Located?

In most home heating systems that use gas, the thermocouple is mounted close to the burner assembly. It connects to the gas valve and communicates with the control unit to let it know if the pilot light is active. Without it, your system would have no way to safely manage gas flow, which could be dangerous.

What Is the Function of an HVAC Thermocouple?

The primary HVAC thermocouple function is safety. It acts as a flame sensor in older gas furnaces that rely on a standing pilot light. If the pilot light goes out, the thermocouple stops generating voltage. That voltage is what keeps the gas valve open. So, when the flame disappears, the thermocouple signals the system to close the valve, stopping the flow of gas and preventing a potential leak.

In this way, the HVAC thermocouple's purpose is twofold: It ensures that the system only allows gas to flow when there’s a flame to ignite it, and it protects your home from gas buildup that could lead to serious safety issues.

How an HVAC Thermocouple Works

When the pilot light is lit, it heats the thermocouple’s tip. This heat causes a small voltage to build up due to the temperature difference between the heated tip and the cooler end connected to the control board. That voltage holds the gas valve open. As long as the flame stays on, the thermocouple continues to generate current and the gas valve remains open.

If the flame of the pilot light goes out — whether from a draft, dirt or another issue — the tip of the thermocouple cools. This drop in temperature causes the voltage to disappear, which tells the system to shut off the gas. It’s a simple but reliable mechanism that’s been used in heating appliances for decades.

More Related Articles:

What Are the Symptoms of a Bad Furnace Thermocouple

Like any component in your HVAC system, a thermocouple can wear out over time. Here are a few symptoms that may indicate the thermocouple no longer works properly:

The pilot light won’t stay lit.
The furnace struggles to ignite or doesn’t turn on at all.
You have to manually relight the pilot repeatedly.
The pilot light flame appears weak or flickers.

These symptoms don’t always mean the thermocouple is the issue, but they’re a strong clue, especially if the rest of your system seems to be working normally.

Why Thermocouples Still Matter in Modern HVAC Systems

Although many modern heating and cooling systems no longer rely on thermocouples, they remain common in older furnaces and some water heaters. Understanding how an HVAC thermocouple works helps you troubleshoot heating issues and make informed decisions about repairs or upgrades.
